CAT 1093124

CAT 1093124

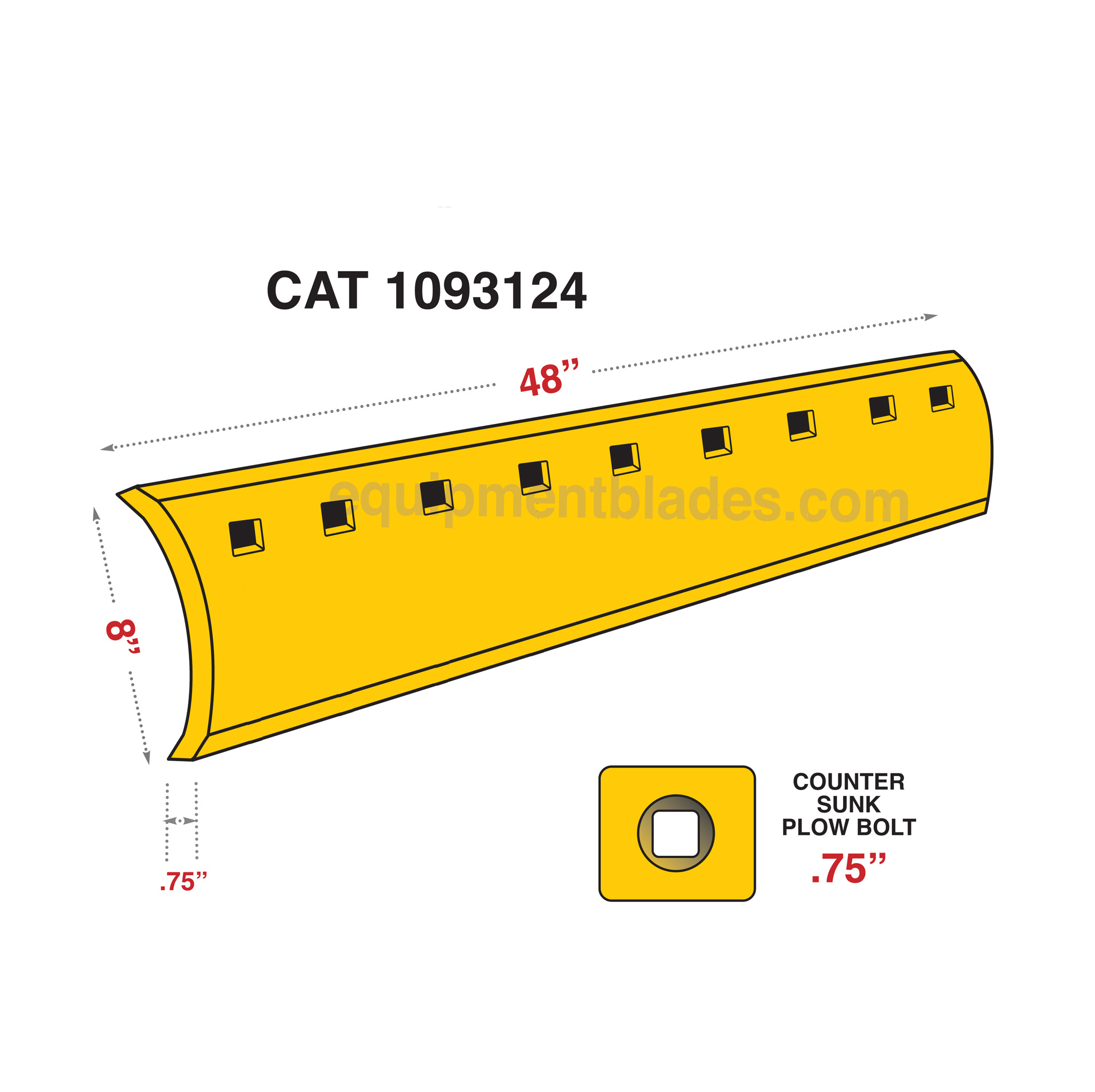

CAT style bolt on cutting edge.  Through hardened guaranteed against breakage.  This cutting edge that is .75" thick, 8" wide, and 48" in length.  It takes 9 - .75" grade 9 plow bolts and nuts.  The hole spacing is 3.00” from hole 1 to the end, 3.00” from hole 1 to 2, and 6.00” from hole 2 to 3.

SPECIFICATIONS:

  • THICKNESS  .75 "
  • WIDTH  8 "
  • LENGTH  48 "
  • BOLT DIAM  .75"
  • HOLE QTY  9
  • HOLE 1 DIST END  3.00 "
  • HOLE 1 DIST 1 TO 2  3.00 "
  • HOLE 1 DIST 2 TO 3  6.00 "
  • WEIGHT  73 lbs
