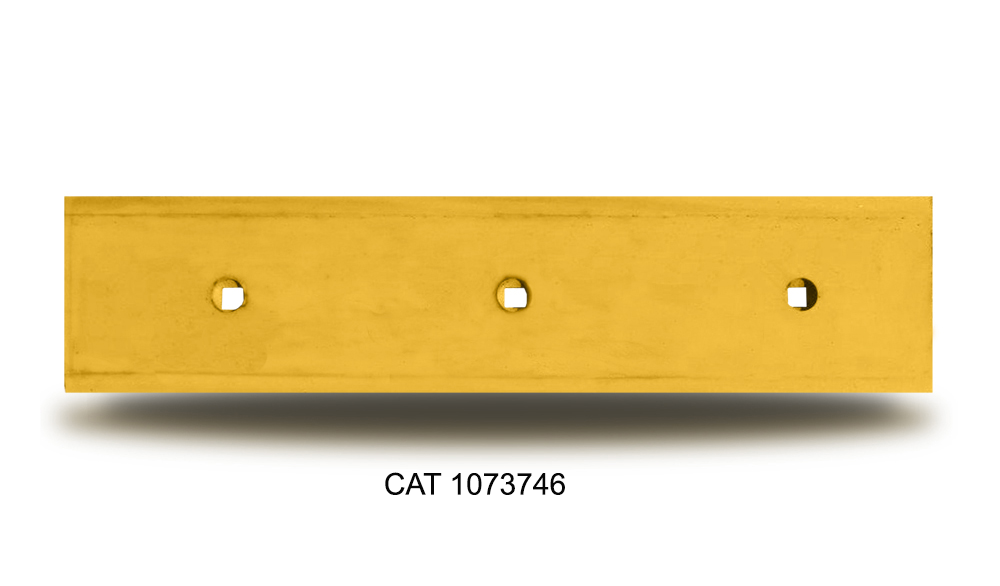

CAT 1073746

CAT 1073746 - LOADER BUCKET CENTER

Suggested models CAT IT12, IT14, IT24, IT26, IT28, IT38 General Purpose, CAT 936 E F Corner Guard System, 938 F G Corner Guard System.

Quantity needed 2

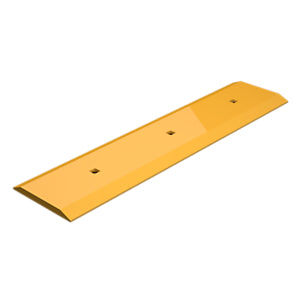

CAT style bolt on cutting edge.  Through hardened guaranteed against breakage.  This is a double beveled cutting edge that is 1" thick, 11" wide, and 46.563" in length.  It takes 3 - 1" grade 9 plow bolts and 3 - 1" nuts. The hole spacing is 7.437” from hole 1 to the end, 15.00” from hole 1 to 2, and 15.00” from hole 2 to 3.

SPECIFICATIONS:

  • THICKNESS  1 "
  • WIDTH  11 "
  • LENGTH  46.563 "
  • BOLT DIAM  1"
  • BLADE TYPE  Double Bevel
  • HOLE QTY  3
  • HOLE 1 DIST END  7.437 "
  • HOLE 1 DIST 1 TO 2  15.00 "
  • HOLE 1 DIST 2 TO 3  15.00 "
  • WEIGHT  125 lbs
